Amal Carburetor Parts Breakdown
Find Your Amal Carb Parts
It’s all in the numbers

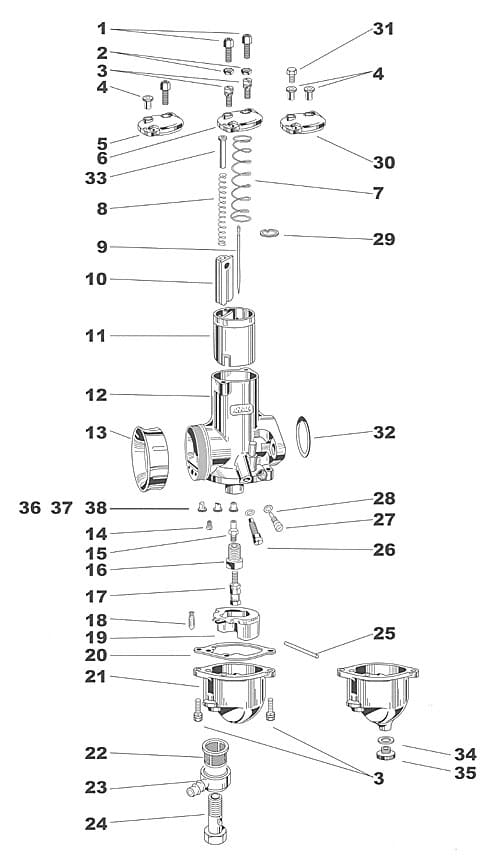

Browse the exploded diagram to find the part you are looking for then find it on the website or give us a call to order!
| No. | Description | 600 Series | 900 Series |
|---|---|---|---|
| 1 | Cable adjuster | 4/035 | 4/035 |
| 2 | Cable adjuster locknut | 5/077 | 5/077 |
| 3 | Screw for float bowl and mixing chamber top | 622/086 | 622/086 |
| 4 | Cable ferrule (with mid-cable adjuster) | 6/132A | 6/132A |
| 5 | Mixing chamber top for adjuster and ferrule | 622/097 | 928/097 |
| 6 | Mixing chamber top (standard) | 622/064 | 928/064 |
| 7 | Throttle slide spring | 622/131 | 622/131 |
| 8 | Choke valve spring | 622/129 | 622/129 |
| 9 | Throttle needle, 2-stroke | 622/063 | 928/063 |
| 9 | Throttle needle, 4-stroke | 622/124 | 622/124 |
| 10 | Choke valve | 622?062 | 928/062 |
| 11 | Throttle slide (No. 2 cutaway) | 622/060/2 | 928/060/2 |
| 11 | Throttle slide (No. 2 1/2 cutaway) | 622/060/2.5 | 928/060/2.5 |
| 11 | Throttle slide (No. 3 cutaway) | 622/060/3 | 928/060/3 |
| 11 | Throttle slide (No. 3 1/2 cutaway) | 622/060/3.5 | 928/060/3.5 |
| 12 | Carburetor body | ||
| 13 | Velocity stack (plastic) | 376/066 | 928/066 |
| 14 | Pilot jet (state size req'd) | 124/026 | 124/026 |
| 15 | Needle jet (2-stroke 105) | 622/079/105 | 622/079/105 |
| 15 | Needle jet (2-stroke 106) | 622/079/106 | 622/079/106 |
| 15 | Needle jet (2-stroke 107) | 622/079/107 | 622/079/107 |
| 15 | Needle jet (2-stroke 108) | 622/079/108 | 622/079/108 |
| 15 | Needle jet (2-stroke 109) | 622/079/109 | 622/079/109 |
| 15 | Needle jet (4-stroke 105) | 622/122/105 | 622/122/105 |
| 15 | Needle jet (4-stroke 106) | 622/122/106 | 622/122/106 |
| 15 | Needle jet (4-stroke 107) | 622/122/107 | 622/122/107 |
| 16 | Jet holder, 4-stroke | 622/128 | 622/128 |
| 16 | Jet holder, 2-stroke | 1034/080 | 1034/080 |
| 17 | Main Jet (state size req'd) | 376/100 | 376/100 |
| 18 | Float needle (viton tip) | 622/197 | 622/197 |
| 19 | Float | 622/069 | 622/069 |
| 20 | Float bowl washer | 622/073 | 622/073 |
| 21 | Float bowl 0.10in. (2.5mm) seating | 622/050 | 622/050 |
| 21 | Float bowl 0.10in. seating with drain plug | 622/055 | 622/055 |
| 22 | Filter | 376/093 | 376/093 |
| 23 | Banjo, single | 376/097 | 376/097 |
| 23 | Banjo, double, 150 deg. | 376/139 | 376/139 |
| 23 | Banjo, double, 55 deg | 376/410 | 376/410 |
| 23 | Banjo, double, 180 deg | 376/419 | 376/419 |
| 24 | Banjo bolt | 622/078 | 622/078 |
| 25 | Float spindle | 622/071 | 622/071 |
| 26 | Throttle stop adjusting screw | 622/077 | 622/077 |
| 27 | Pilot air adjusting screw | 622/076 | 622/076 |
| 28 | 'O' rings | 622/082 | 622/082 |
| 29 | Needle clip | 622/067 | 622/067 |
| 30 | Mixing chamber top for 2 ferrules (only used available) | 622/098 | 622/098 |
| 31 | Plug for mixing chamber top | 4/137A | 4/137A |
| 32 | 'O' ring for flange sealing | 622/101 | 622/101 |
| 33 | Choke valve guide | 622/134 | 622/134 |
| 34 | Float bowl drain plug washer | 622/151 | 622/151 |
| 35 | Float bowl drain plug (plastic) | 622/147 | 622/147 |
| 35 | Float bowl drain plug (metal) | 622/155 | 622/155 |
| 37 | Spray tube | 622/075 | 622/075 |
| 38 | Spray tube | 622/074 | 622/074 |
| Not Illustrated | |||
| Banjo bolt washer (metal banjos only) | 13/163 | 13/163 | |
| Main jet filter | 928/071 | 928/071 | |

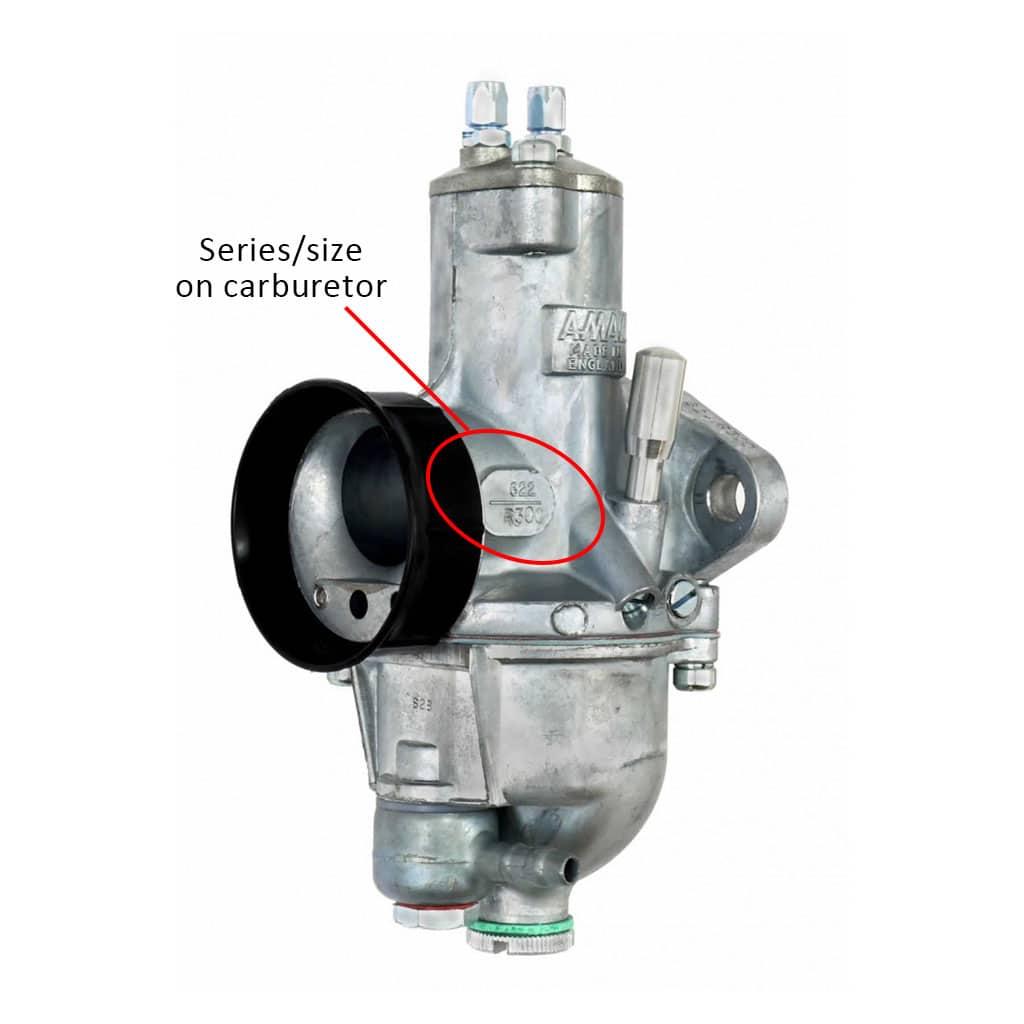

| Series/Size | Right | Left | Engine |
|---|---|---|---|
| 600 Series 22mm | 622/300 | 622/301 | 4-stroke |
| 600 Series 22mm | 622/302 | 622/303 | 2-stroke |
| 600 Series 24mm | 624/300 | 624/301 | 4-stroke |
| 600 Series 24mm | 624/302 | 622/303 | 2-stroke |
| 600 Series 26mm | 626/300 | 626/301 | 4-stroke |
| 600 Series 26mm | 626/302 | 626/303 | 2-stroke |
| 900 Series 28mm | 928/300 | 928/301 | 4-stroke |
| 900 Series 28mm | 928/302 | 928/303 | 2-stroke |
| 900 Series 30mm | 930/300 | 930/301 | 4-stroke |
| 900 Series 30mm | 930/302 | 930/303 | 2-stroke |
| 900 Series 32mm | 932/300 | 932/301 | 4-stroke |
| 900 Series 32mm | 932/302 | 932/303 | 2-stroke |
